แบตเตอรี่ Li-Ion BLACK-TANK 18650 Protected 3500mAh Rechargeable หัวนูน (ราคาต่อก้อน)

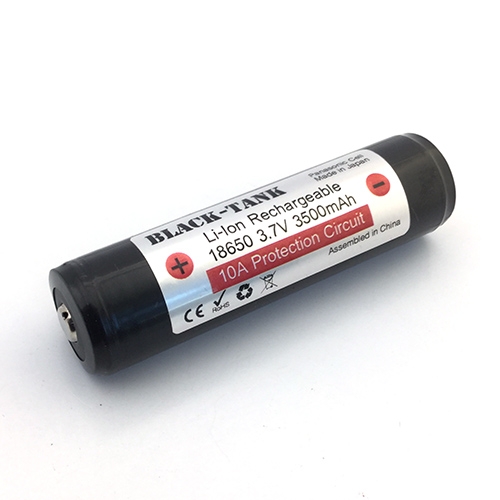

แบตเตอรี่ BLACK-TANK 18650 3500mAh with Protected 3.7V Li-ion Battery
P/N : BTK18650-3500-P

Maximum discharging current: 10A.
Battery built on the basis of Panasonic NCR18650GA cells.
Use SEIKO PCB Protection circuit
Design to max current by using 3 Mos-FET bypass high current.

Specification:
Nominal Capacity : 3500mAh
Minimum Capacity : 3350mAh
Charging Voltage : 4.2V
Nominal Voltage : 3.7V
Discharge Cut-off Voltage : 2.5V
Charging Method : CC-CV
Standard Charge Current : 1475mA

Charging Time :
Standard Charge : 4.5hours
Rapid Charge : 2hours

Max. Charge Current : 3500mA
Max. Discharge Current : 10A
Charge-discharge cycles : Over 500 times.

Cell Weight : 50 g.
Cell Dimension : 18.6 * 68.9mm

Operating Temperature
Charge : 0 to 45°C
Discharge : -20 to 60°C

Storage Temperature
1 year : -20~25°C
3 months : -20~45°C
1 month : -20~60°C
