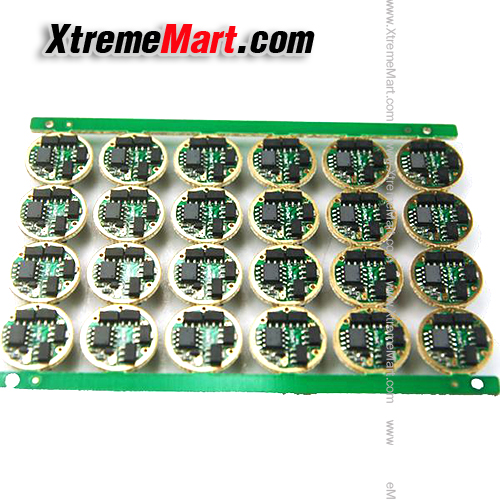

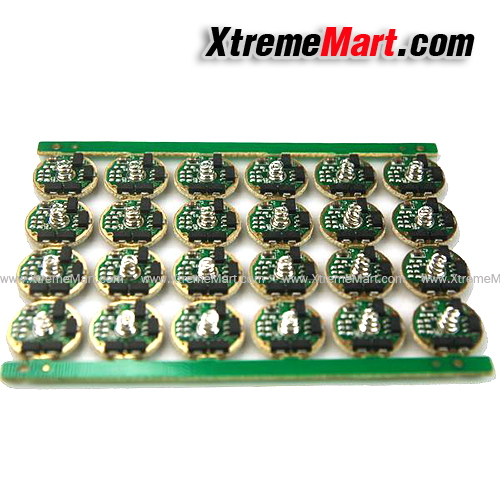

8x7135 V2 LED Driver 3040mA 17mm

8x7135 V2 LED Driver 3040mA 17mm
P/N:LB-8-7135V2

Features:
- Current regulation for all output mode (no PWM flicks even at low mode)
- As low as 3mA-5mA for low output mode
- Eight programmable outputs
- Low voltage warning below 2.8V
- High mode: Constant regulated at 3040mA
- 1oZ copper PCB, immersion gold surface

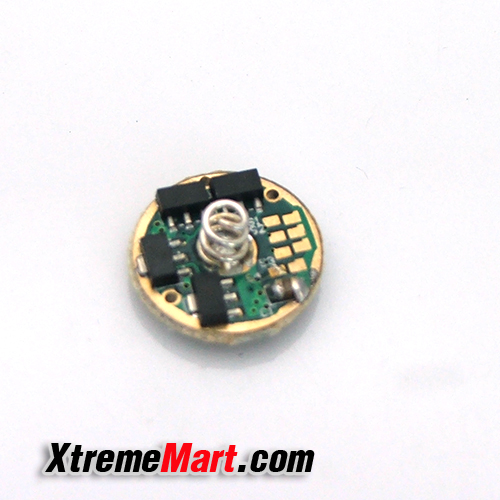

- 1.6mm double sided PCB, 17mm diameter, 4.8mm height w/o spring, copper spring loaded positive

Voltage support: 2.5V-4.5V
Battery types: 1xLi-ion or 3xNiMH/alkaline
Output version: 3040ma
LED support: XM-L, P7, SST50, etc. (3*XP-E, 2*XP-G wired in parrellel)
Low voltage warning: under 2.8V, reduce output to 35%, and flash once per minute
Last mode memory: By soldering the bridge at S1, you toggle this setting (default off - disconnected).

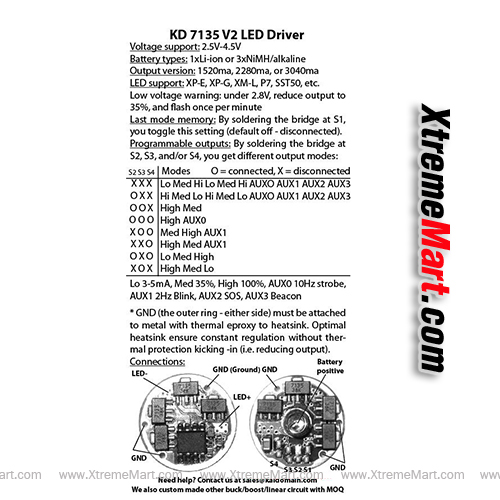

Programmable outputs: By soldering the bridge at S2, S3, and/or S4, you get different output modes. (see product image for detail output and connections)
* GND (the outer ring - either side) must be attached to metal with thermal eproxy to heatsink. Optimal heatsink ensure constant regulation without thermal protection kicking -in (i.e. reducing output).
** Do not short circuit, do not reverse battery polarity, warranty does not cover user damage.
