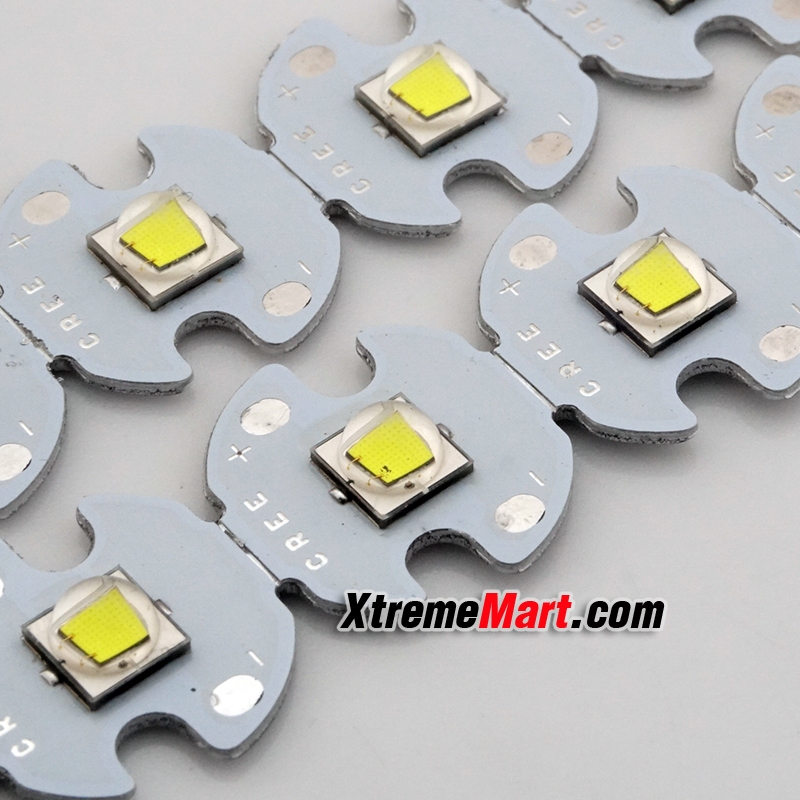

หลอด LED Cree XM-L2 LED Emitter U2 6C 1100LM 6000K White Color (แสงขาว) 10W with 16mm Round Base For Flashlight DIY (หลอดละ)

หลอด LED CREE XM-L2 T6 1198 lumens 10W ฐาน 16mm อลูมินั่ม

          XLamp XM-L2 Highest-Performing, Commercially Available, Single-Die LED
Delivering breakthrough lumen output and efficacy in the XM package,
the XLamp XM-L2 LED is the highest-performing, commercially available,
single-die LED. Built on the SC⊃3; Technology Platform, the XLamp XM-L2 LED
delivers up to 20% more lumens and lumens-per-watt and double the lumens-per-dollar of the original XM-L. The XM-L2 LED offers the unique combination of high efficacy and high lumen output at high drive currents, delivering an unprecedented 1198 lumens at 116 lumens-per-watt efficacy at 3 A, 25°C.

คุณสมบัติ :
รุ่นหลอด: Cree XML2-T6
โทนแสง : แสงสีขาว
Color Temperature: 6500K
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 3.0A
Power: 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°
Diameter :12mm/14mm/16mm/20mm
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable - JEDEC J-STD-020C
Electrically neutral thermal path

Attention to the heat,working temperature maintained at 50 degrees Celsius or lower as possible

Package Included:

1PC x CREE XML2 Led Emitter
